Epulse30 Mechanical Dimensions

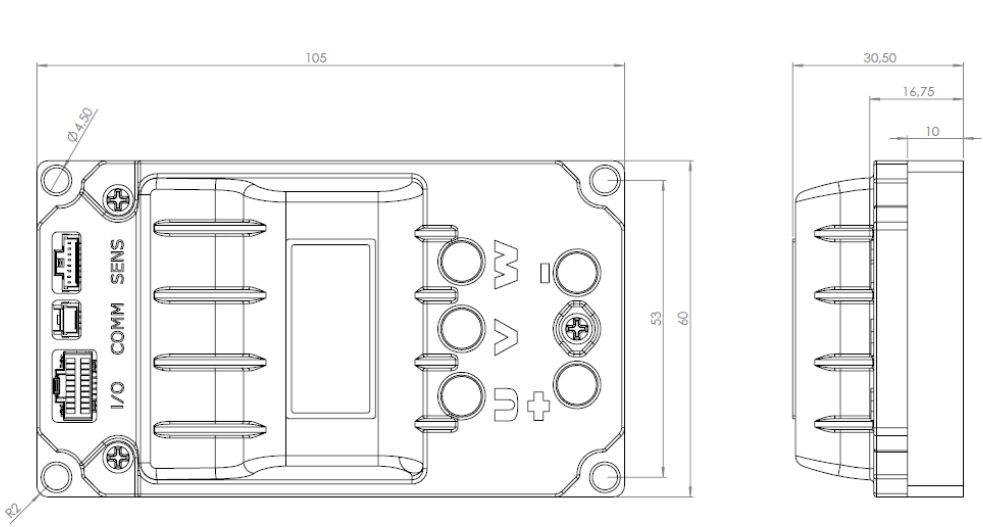

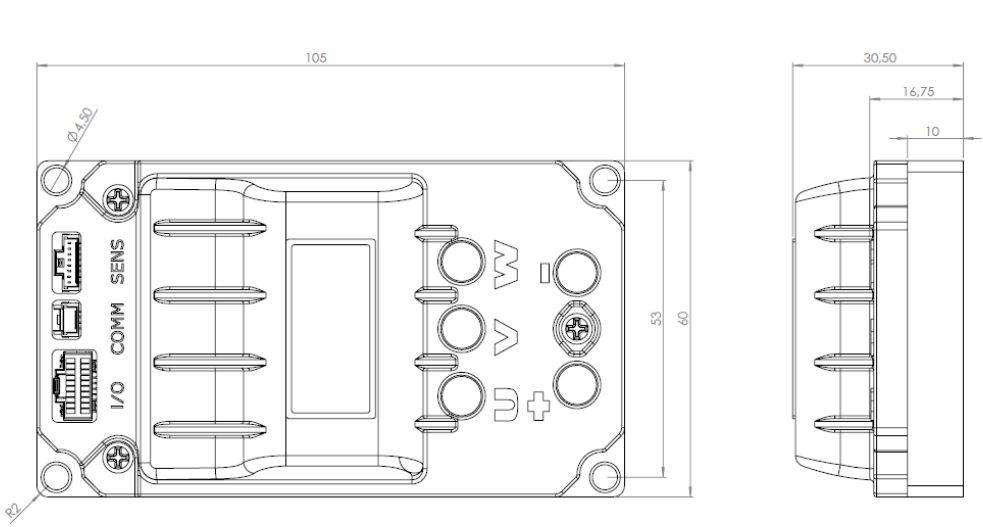

This page shows the mechanical dimensions of the Epulse30 servo drive. The drawing gives the overall dimensions, the mounting holes, and the connection positions required for the installation.

3D Model (Step format): :epulse50_dc_servodrive:ftd30_20200618.zip

- Verify the mounting clearance and the cable routing before installation. - Respect the minimum distances for cooling and for connector access. - The dimensions are nominal; refer to the 3D model for the exact geometry.
