Installation
This page shows the installation of the NLiR120Q rotolinear motor. It illustrates the fixing points and the load coupling for the rotary side.

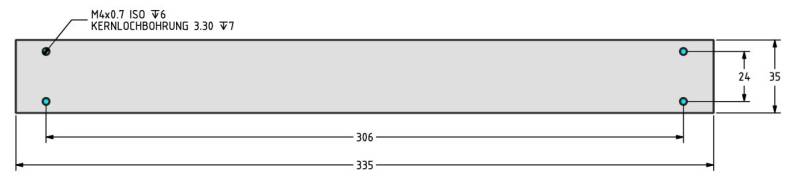

NLiR120Q-100-1 Fixing points
The illustration below shows the fixing points of the NLiR120Q-100-1 version.
NLiR120Q-100-2 Fixing points
The illustration below shows the fixing points of the NLiR120Q-100-2 version.
Load coupling on the rotary side
The illustration below shows the load coupling arrangement on the rotary side.
Installation notes
- Use the fixing points shown for the respective motor version. - Mount the motor on a flat, rigid surface and align the rotary axis. - Respect the coupling alignment and the allowable misalignment on the rotary side. - Ensure free rotation and adequate clearance for the connectors and the cable.
