HSB (Hall sensor Box) linear positioning system
Overview
L-series motors can be provided with a linear encoder which can be mounted together with the primary part, without the need o fan external stripe. Available feedback types are SIN/COS 1 Vpp.
Type code
Mounting holes
Mounting with the linear motor primary part
The HSB is supposed to be mounted I line with the primary part and overlapping the center of the secondary part. The following scheme shows an example of mounting with left cable direction.
Wire colors
HSB is equipped with PUR cable with lenght of 1 meter
| Color | Signal description |
| Red | +5VDC (Encoder power supply) |
| Blue | Ground (Encoder ground) |
| Yellow | SIN+ |
| Green | SIN- |
| Gray | COS+ |
| Pink | COS- |
SIN/COS 1Vpp output signal
The HSB standard signal output type is SIN/COS 1Vpp, with a signal period corresponding to the pole pitch of the motore (32mm).
The signal output is of differential type with an amplitude of 0.5V per channels and a reference level of 2.5V.
Mounting example

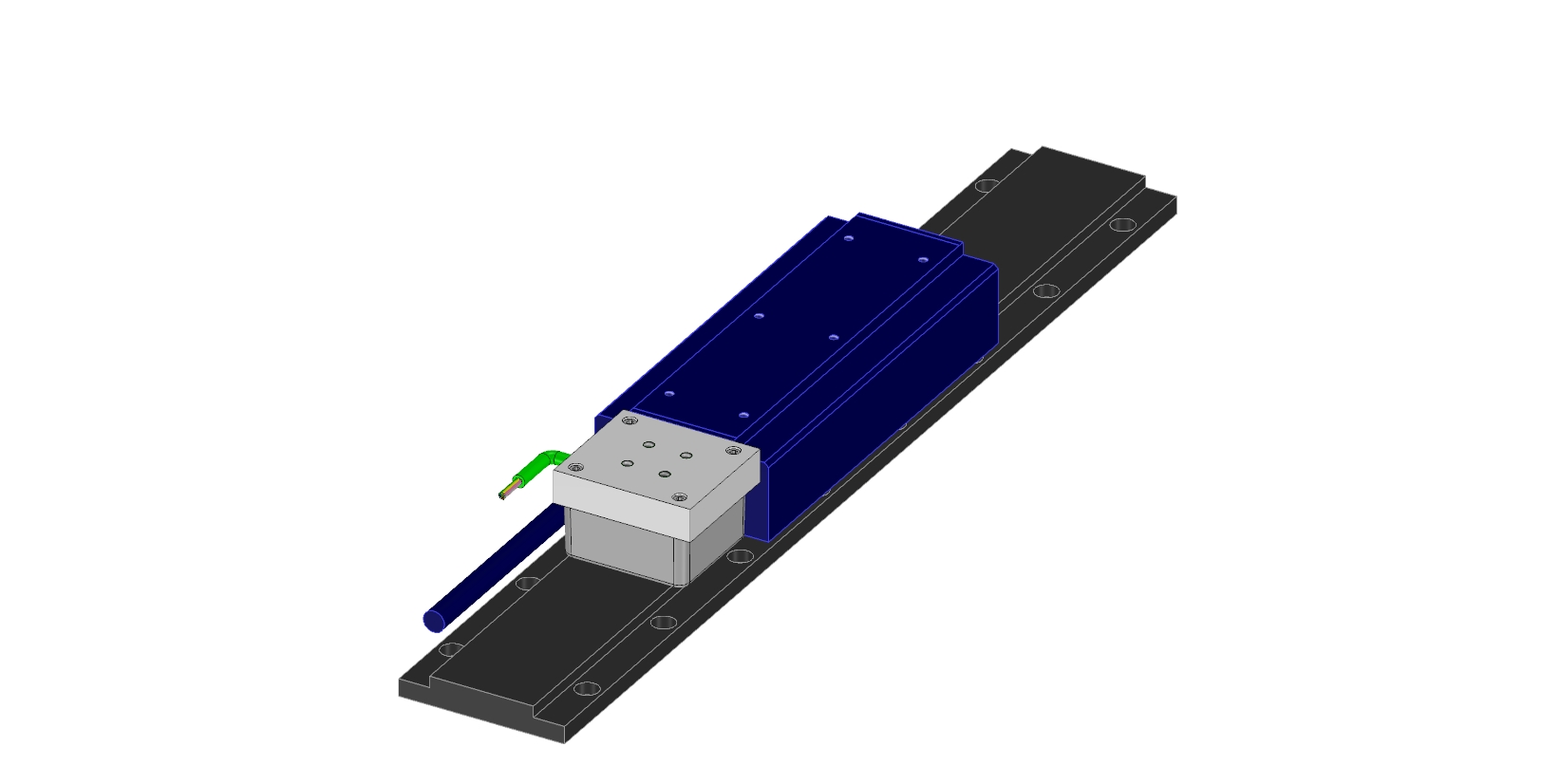

HSB-L version
3D Model file: :ironcore_motors:hsb-01-l.zip

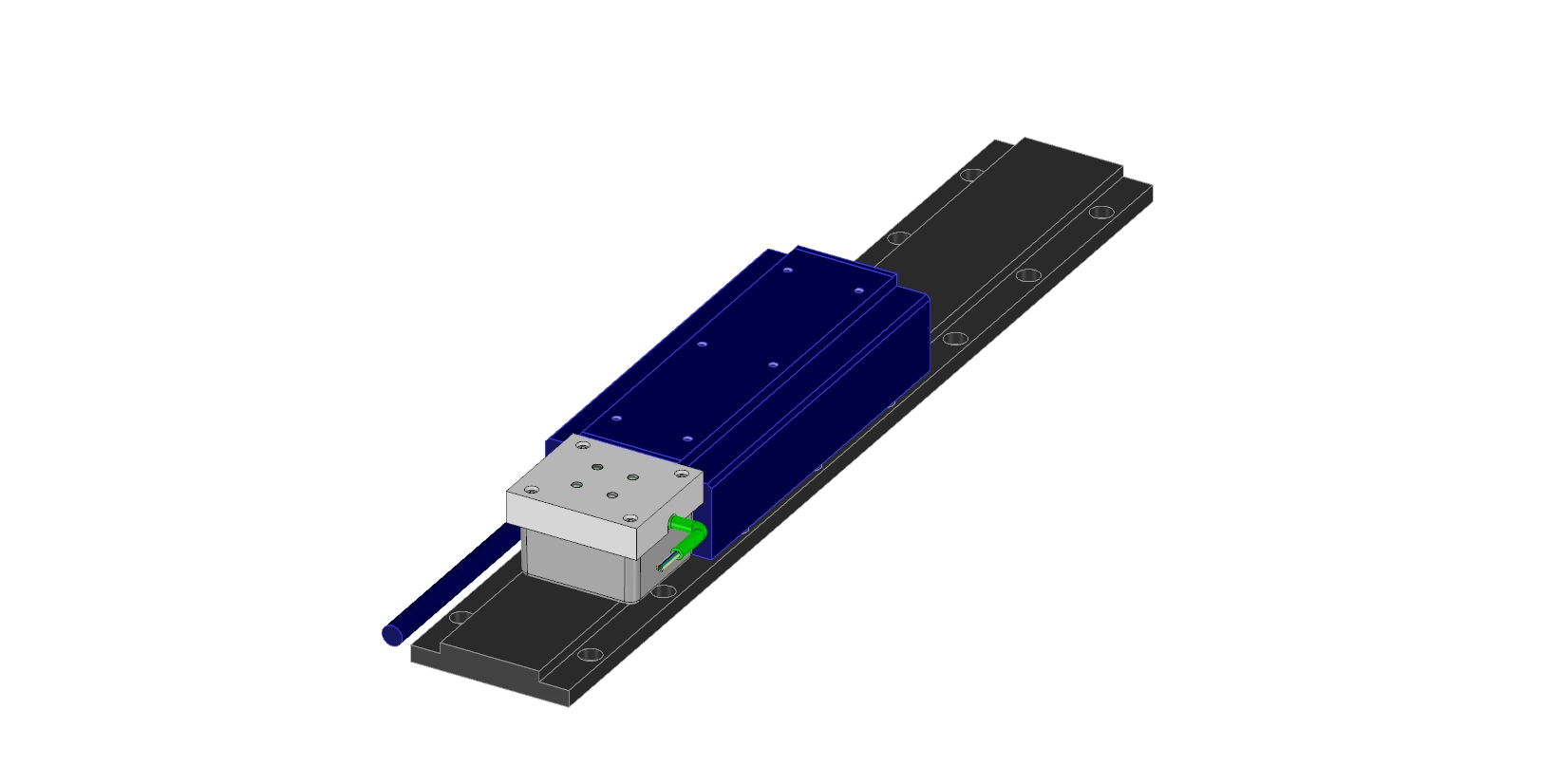

HSB-R version
